Cryogenic Bellows

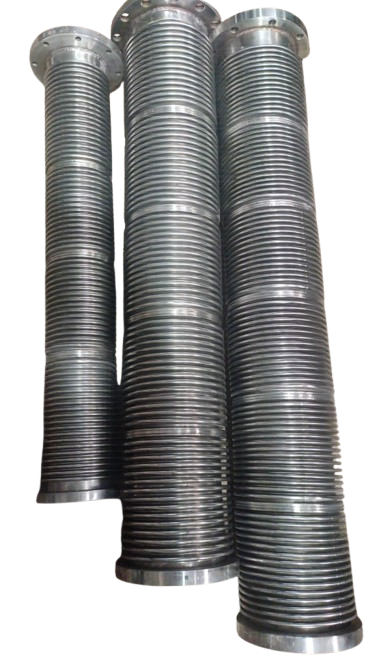

Cryogenic Bellows by Excel Bellows: Reliable Solutions for Extreme Cold Applications

Cryogenic bellows are specialized components designed to withstand very low temperatures and are used in systems handling liquefied gases like liquid nitrogen, helium, oxygen, and hydrogen. At Excel Bellows, we manufacture high-quality cryogenic bellows that ensure flexibility, durability, and reliable performance in demanding environments. These bellows are essential for maintaining system integrity and safety in industries that operate in cryogenic conditions.

Materials Used for Cryogenic Bellows:

Cryogenic bellows are constructed from materials that maintain flexibility and strength at extremely low temperatures. Common materials used include:

Stainless Steel (SS304, SS316): These grades of stainless steel offer excellent corrosion resistance and durability, suitable for harsh environments. SS304 is known for its ductility, while SS316 provides additional resistance to chemical corrosion.

Nickel Alloys (e.g., Inconel 625, Monel): Known for their high strength and corrosion resistance, nickel alloys perform exceptionally well under cryogenic conditions.

Hastelloy: This alloy is used in applications that require excellent mechanical strength and corrosion resistance in challenging environments.

Titanium: Lightweight and strong, titanium is used in specialized applications where weight considerations are crucial.

Size and Temperature Range:

Excel Bellows offers a range of sizes for cryogenic bellows to meet various application requirements:

Diameter Range: Bellows can be manufactured with diameters from 25 mm (1 inch) to 1500 mm (60 inches).

Length: Typically ranges from 100 mm (4 inches) to over 2000 mm (80 inches), depending on the movement requirements.

Operating Temperature Range: Our cryogenic bellows can handle temperatures as low as -269°C (-452°F), making them suitable for liquefied gases like liquid helium.

Key Features:

High-Grade Materials: Made from stainless steel, nickel alloys, or other cryogenically compatible materials, our bellows maintain strength and flexibility even in extreme cold.

Leak-Tight Design: The construction ensures a tight seal, preventing leaks in high-pressure cryogenic systems.

Customizable Specifications: We provide tailored solutions to meet specific requirements, including size, pressure ratings, and connection types.

Multi-Directional Movement Accommodation: Our bellows can handle axial, lateral, and angular displacements, ensuring versatility in different system configurations.

What are the Applications of Cryogenic Bellows?

Cryogenic bellows play a critical role in various industries that deal with low temperatures:

Cryogenic Storage and Transfer Systems: Used in liquid gas storage tanks and transfer pipelines to manage thermal expansion and prevent leaks.

Liquefied Natural Gas (LNG) Systems: Essential in LNG plants for handling temperature variations and vibrations in transport systems.

Aerospace Industry: Applied in cryogenic fuel transfer systems, such as liquid hydrogen and liquid oxygen for space exploration.

Medical Equipment: Used in MRI machines and cryogenic preservation systems where low temperatures are crucial.

Research Laboratories: Employed in equipment handling liquid helium, nitrogen, and other cryogenic fluids.

Benefits of Using Excel Bellows' Cryogenic Bellows:

Superior Low-Temperature Performance: With the ability to operate at temperatures as low as -269°C, our bellows are ideal for handling liquefied gases.

Corrosion Resistance: The use of high-quality materials ensures the bellows resist rust and corrosion, even in challenging conditions.

Enhanced Safety: Leak prevention and movement absorption help maintain the integrity and safety of cryogenic systems.

Long Service Life: The robust construction and high-quality materials provide durability, reducing maintenance needs.

Custom Solutions: We offer custom designs to meet the unique requirements of each cryogenic application.

Maintenance Tips

To ensure the longevity and reliability of cryogenic bellows:

Regular Inspections: Inspect the cracks and other signs of wear.

Proper Installation: Follow installation guidelines to avoid stress and ensure proper alignment.

Routine Maintenance: Periodic checks can help identify potential issues early.

Why Choose Excel Bellows?

Excel Bellows is a trusted manufacturer of cryogenic bellows, offering high-quality products that meet the stringent requirements of cryogenic applications. We provide custom-engineered solutions, competitive pricing, and expert support to ensure our clients get the best possible products for their needs.

"Cryogenic bellows manufacturer"

"Stainless steel cryogenic bellows"

"High-quality cryogenic expansion joints"

"Cryogenic bellows for LNG systems"

"Custom cryogenic solutions"

Choose Excel Bellows for your cryogenic needs to ensure safety, reliability, and performance in extreme cold environments. Contact us for more Info.
